Emerson SG Prewired Kit - 550K Pots
Handwired 50s Style Harness - 550k Premier Pro Pots - Bumblebee Paper in Oil Caps - Built for Gibson SGs
£184.99
RECEIVE BY:
Monday, 20 Apr
ORDER WITHIN:
12
H
4
M
48
S
* only for applicable methods
View In Showroom
Request an appointment with one of our team
UK Next day delivery available
Fast shipping options with trusted couriers, get it next day!
EVERY SINGLE GUITAR SETUP
Carefully done no matter the cost
WAYS TO PAY:

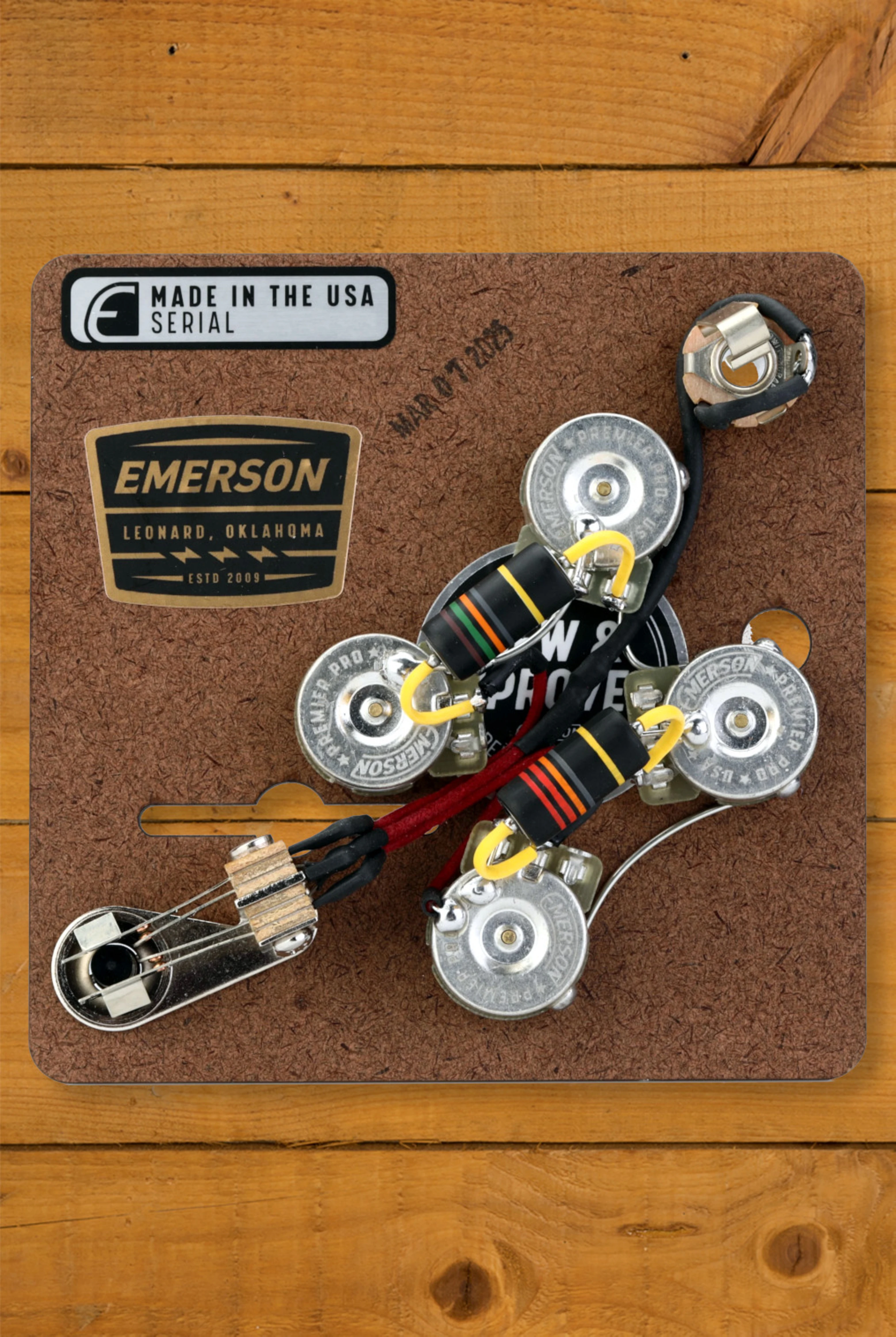

The Emerson Custom 550K Series SG Prewired Kit is a premium 50s-style wiring harness designed specifically for USA Gibson SG models. Handwired in the USA with Emerson's Premier Pro potentiometers, Bumblebee Paper in Oil capacitors and vintage-spec buss wire, this kit delivers the clarity, punch and dynamic response associated with great vintage SG tone. Each harness is built by hand with meticulous attention to detail, ensuring exceptional performance and long-term reliability.
Wired 50s style, the harness provides stronger, tighter and more transparent tone with far less treble loss when rolling back the volume. Both volume and tone controls respond more smoothly, without hot spots, and interact with each other in a musical way reminiscent of classic tweed-era amps. Rolling back the volume cleans up an overdriven amp without losing presence in the mix, making this wiring layout a favourite among players seeking authentic vintage behaviour.
This SG kit includes 550k Premier Pro split shaft pots for maximum clarity and articulation, a Switchcraft J11 jack with a 3/8 inch bushing, and a Centralab right-angle 3-way toggle switch with a deep threaded nut.
Includes
- 4 x 550k Emerson Premier Pro split shaft potentiometers
- 1 x Switchcraft J11 1/4 inch mono input jack (3/8 inch bushing, Made in USA)
- 1 x Centralab right-angle 3-way toggle switch (deep threaded nut included, switch tip not included)
- 2 x Emerson Bumblebee Paper in Oil capacitors
- 0.022uf Bridge
- 0.015uf Neck
- Wiring diagram
Switch tip sold separately.
What Makes 50s Style Wiring Special
- Stronger, tighter and more transparent overall tone
- Far less treble loss when rolling back the volume
- Smoother, more responsive volume and tone controls
- Volume and tone interact musically, similar to vintage tweed amps
- Rolling back volume cleans up an overdriven amp without disappearing in the mix
Installation Tips for Split Shaft Pots
US-spec split shaft pots are designed for USA-spec 24-spline push-on knobs. Some USA and import guitars use knobs that will not fit these shafts. If a knob feels too tight, gently crimp the top of the pot shaft together slightly before installation to avoid damaging the shaft. Emerson recommends taking your time during installation and contacting them if you have any questions.
