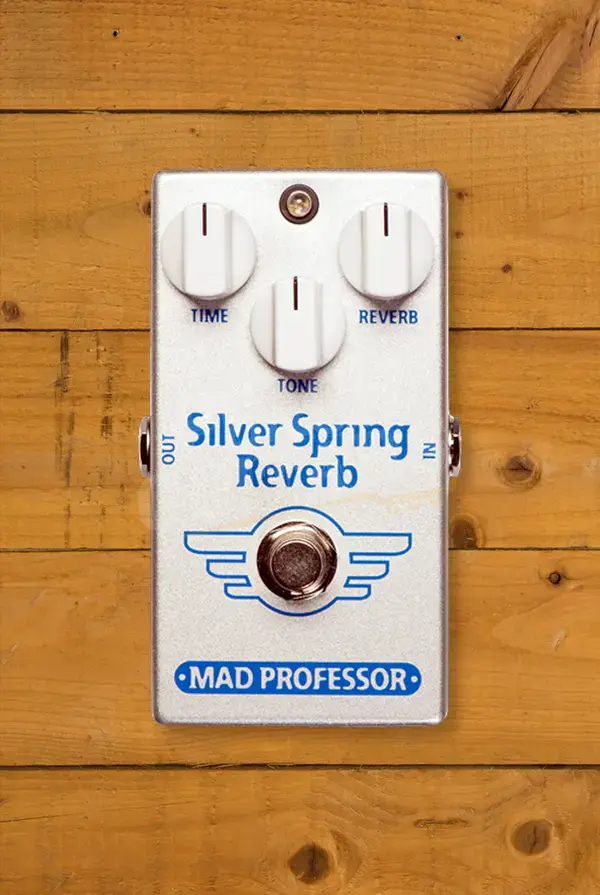

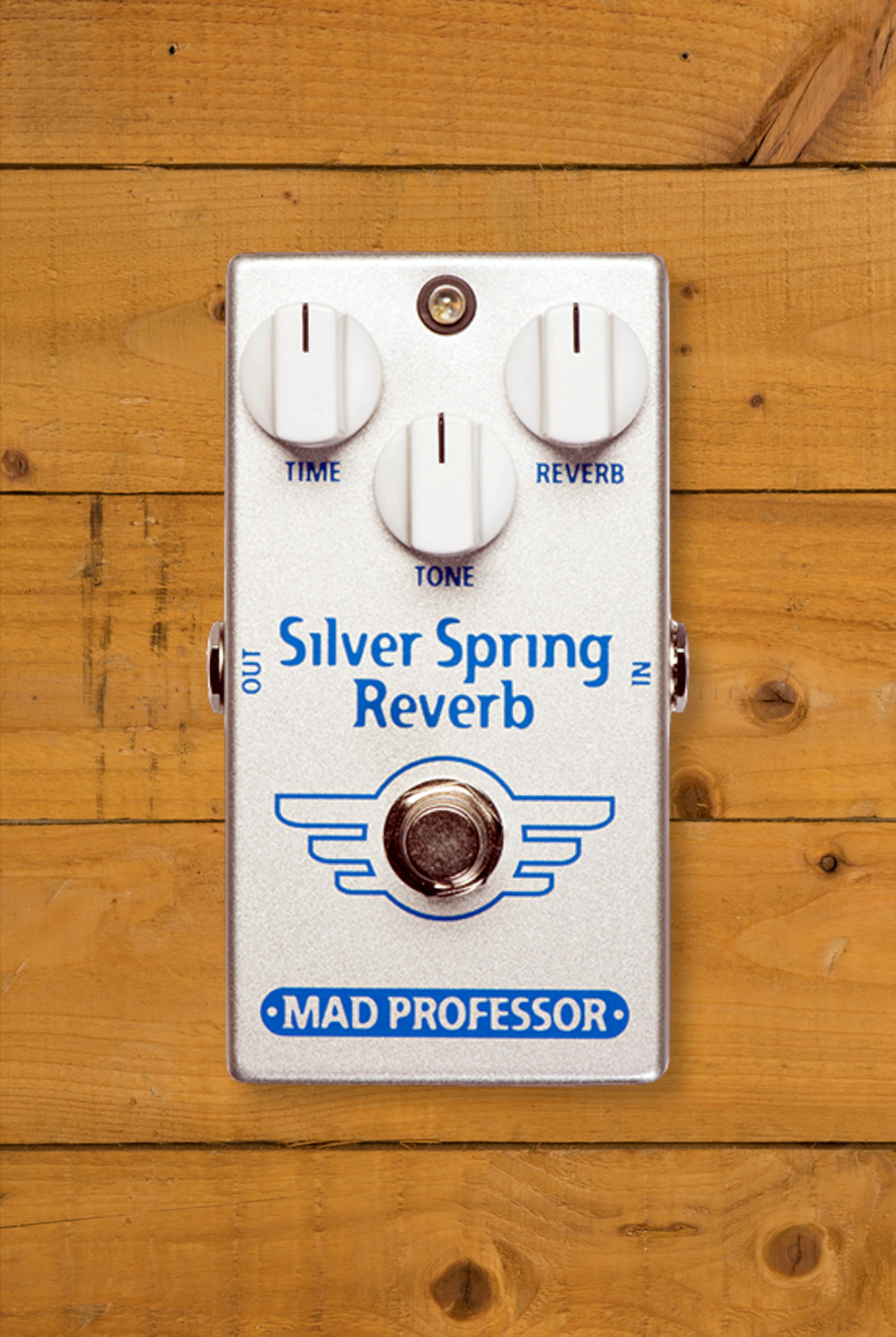

Mad Professor Silver Spring Reverb

Silver Spring Reverb (SSR) is a compact, easy to use digital/analog reverb with a pure analog direct signal path. It creates a natural sounding ambient reverb that will not get in the way of your original signal.

The SSR's sound is exceptional with a clean signal but was specifically designed to work equally well with the tougher performance requirements of distorted tone. The SSR can be used before distortion, although it was primarily designed to go after. If you use the SSR before distortion, you may want to use a lower Reverb (Wet/Dry) setting.

• TIME: This sets the decay time of reverb. Turn it clockwise for longer decay. At the full counter-clockwise position, the decay is that of a small room. At the full clockwise position, the decay resembles the large hall sound of a plate reverb. Around the centre setting the medium decay time is optimal for rhythmic chords and single notes.
• TONE: This adjusts the bandwidth of the reverb signal. Turning clockwise results in a brighter reverb tone and counter-clockwise darker one. Fully counter-clockwise approximates the response of a typical spring reverb, clockwise a studio reverb.
• REVERB: This adds reverb to dry signal. Reverb can be turned fully off if Reverb knob is turned fully CCW, and is loudest at fully clockwise.
• INTERNAL GAIN TRIM: This sets the output of the pedal and can be boosted or cut from unity.
• Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug centre negative and positive sleeve.
• Current consumption: 80mA at 9VDC
• Supply Voltage Range: 6-9 VDC, 9V recommended.
• Input impedance: 500k Ohm
• Output impedance: 10k Ohm
• True Bypass
• Signal noise ratio: 90dB
