CTS Push Pull Pots

CTS push pull pots are the perfect solution for coil tapping humbuckers and other switching options.

£8.95
Shaft Length
Value
 In Stock
View In Showroom
Request an appointment with one of our team
UK Next day delivery
Fast shipping with trusted couriers, get it next day!
Free UK delivery over £99
What you see is what you will get!
WAYS TO PAY:
Paypal, Visa, Mastercard, Maestro, Visa Electron & Delta
Description

CTS pots are of the highest quality and have long been the "go-to" pots for luthiers, guitar tech's and players worldwide. They are also the first choice for many high end US guitars, notably Fender and Gibson.

Push pull pots with a double-pole double throw switch (DPDT) give many wiring possibilities. This is yet another powerful tool to the guitar builder or tech. Two electrically independent components are controlled by a single knob shaft.

This push pull pot is great for Telecaster series wiring or adding more tonal options to your Strat. such as coil tapping/splitting, series/parallel switching and phase switching.

These push pull pots are manufactured to a resistance tolerance of 8%.

Dimensions (short shaft):

  • Shaft diameter - 0.235'' (5.95mm)
  • Shaft height - 3/8'' (9.52mm)
  • Thread - 3/8'' x 32
  • Thread height - 3/8'' (9.52mm)
  • Required hole diameter - 3/8'' (9.52mm)
  • Cavity depth - 1'' (25.4mm)

Dimensions (long shaft):

  • Thread - 3/8'' x 32
  • Thread height - 3/4'' (19.05mm)
  • Required hole diameter - 3/8'' (9.52mm)
  • Required cavity depth - 1'' (25.4mm)

Taper: Audio/log

Comes complete with hardware (1 hex nut/1 flat washer/1 lock washer)

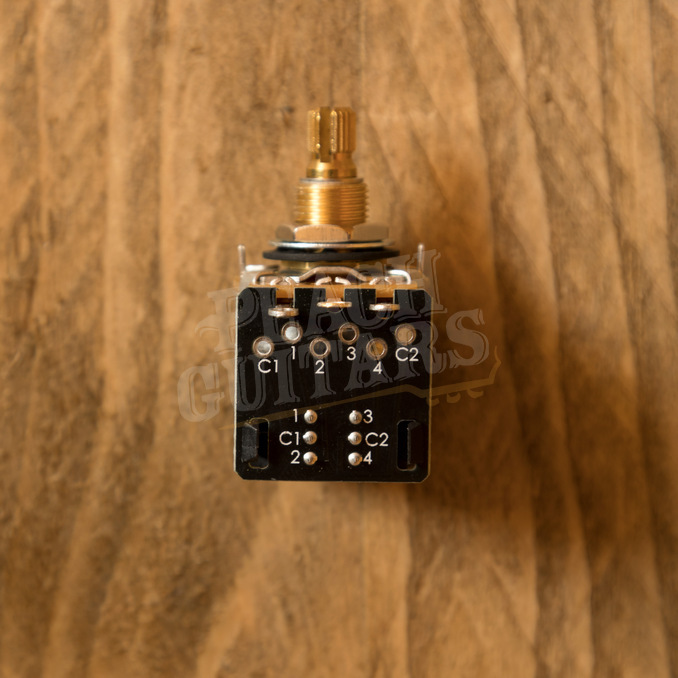

These high quality pots feature a printed circuit board on its side for easier soldering.
