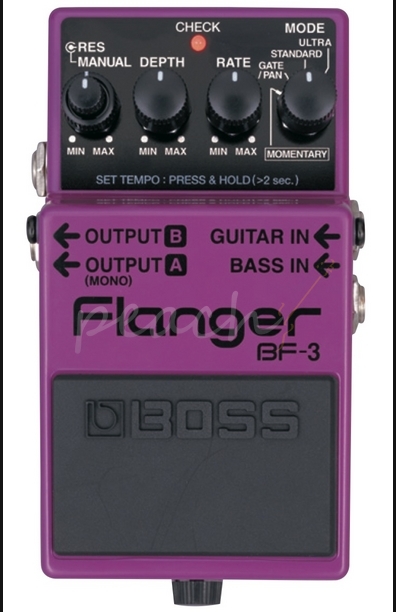

Boss BF3 Flanger

The main features of the Boss BF3 include:

• BOSS' best flanging effects in a compact pedal
• New Ultra and Gate/Pan modes for ultra-fat flanging with very low noise
• Momentary mode turns flanging on instantly
• Tap tempo adjustable via pedal
• Independent Guitar and Bass inputs and stereo outputs

Specifications

• Controls: Res, Manual, Depth, Rate, 4-way Mode Switch
• Connectors: Guitar Input, Bass Input, Output A, Output B, AC Adaptor
• Current Draw: 40 mA (DC 9V)
• Weight: 420g / 15 oz (including battery)
• Nominal Input Level: -20dBu
• Input Impedance: 1MOhm
• Nominal Output Level: -20dBu
• Output Impedance: 1kOhm
• Residual Noise Level: -95dBu (IHF-A weighted, typ.)
• Recommended Load Impedance: 10kOhm or greater
• Delay Time: 0.3 ms - 14.4 ms (Guitar In), 0.3 ms - 6.3 ms (Bass In)
• LFO Speed: 100 ms -18 s
